Cheap PriceList for Ozone Sterilization Machine - BNP 1-5KG ozone generator water cooling corona discharge industrial ozone generator for Aquarium Aquaculture farming wastewater exhaust gas treatment – BNP Detail:
The strong ozone generator SOZ-YW-G series adopt discharge unit of the titanium decarboxylate crystal structure(Grand Central patented product) which is able to bear high temperature, having a extremely steady performance and operation life, it is remarkable for the high discharge efficiency and being not easy to be damaged though there is backwater.The ozone generator adopts the water cooling and the circuit components composed of which are products of international brand-name manufacturers.
Intelligent design of the generator are among the world’s leading technology, which possesses the following functions:
1.Water-cooling.
2.Both air and oxygen source accpetable.
3.Standard 4~20mA signal access port,allowing remote control by different types of ozone measureing devices.
4.Key points monitoring including main board temperature detection,line output transformer temperature detection,cooling water temperature detection,back flow water detection of the corona discharge tube.
5.Stepless adjustable ozone output.
6.Circuit components from Siemens(IGBT).
7.PLC standard.
Component:
1.Ozone module
2.Stainless steel enclosure
3.Ammeter
4.Taiwan 150 type fan
5. Gas flow meter
6.Ozone regulation knob etc
Model |
SOZ YW- |
SOZ-YW- |
SOZ-YW- |
SOZ-YW- |
SOZ-YW- |
SOZ-YW- |
SOZ-YW- |
Parameter |
300G |
400G |
500G |
600G |
1000G |
1500G |
2000G |
Capacity (g/h) with oxygen source |
300 |
400 |
500 |
600 |
1000 |
1500 |
2000 |
Cooling method |
Water cooling |
||||||
Max. output concentration (g/m 3) |
Oxygen source:80~150 Air source:16~35 |
||||||
4~20mA control |
Yes |
||||||
L*W*H(mm) |
800*600*1450 |
1200*600*1450 |
2000*600* 1450 |
2600*600* 1450 |
3500*600* 1450 |
||
Weight( kg) |
120 |
150 |
200 |
250 |
350 |
500 |
700 |
Power (Kw) |
3.2 |
4.8 |
5.5 |
7.0 |
10.2 |
15.5 |
22 |
Electrical power supply |
380~417V, 50~60 HZ |
||||||
Gas source |
oxygen or dry clean air |
On the gas flow control: When using the oxygen source, the gas flow is 10-35 / min; when using the air source, it can be regulated accordingly; please try to turn gas flow down as possible when the ozone density satisfies the demand,( to turn the oxygen flow down can lengthen the service life of the oxygen generator).
Upon a small gas flow control, it can also adjust Ozone volume controls to increase or decrease amount of ozone.It may open a set, two or more sets accordingly, but generally one set will be remained as the spare, the flowmeter of the set which is not open must be turned off.

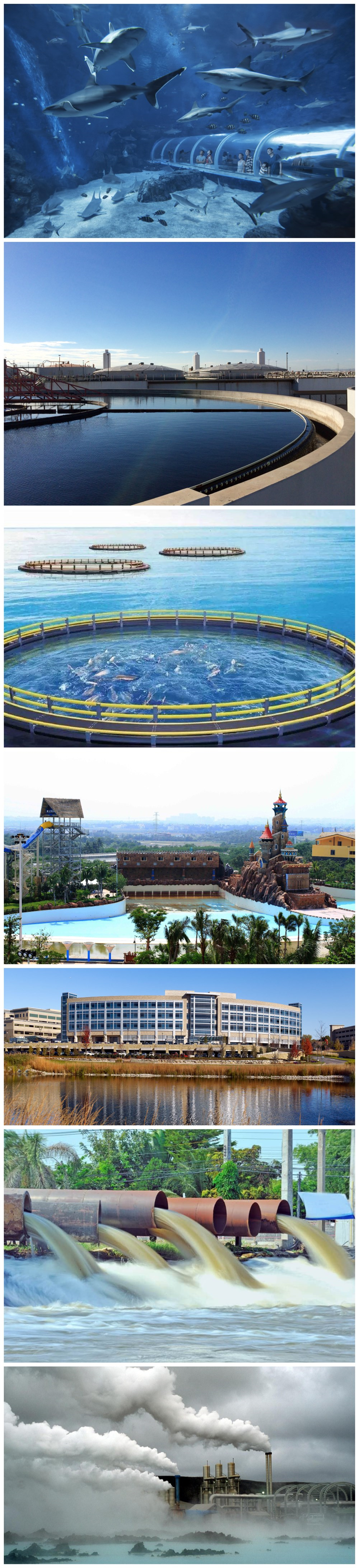

Application:
