Wholesale Price 1.5~5kg/h water cooling industrial ozone generator for Industry, aquarium, agriculture, mariculture and hospital sewage treatment

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    We emphasize progress and introduce new merchandise into the market each and every year for Wholesale Price China 20mg Accessories Plate Ozone Generator, Safety by means of innovation is our promise to each other.
    We emphasize progress and introduce new merchandise into the market each and every year for China Ozone Generator, Ozone Generators, Facing fierce global market competition, we have launched the brand building strategy and updated the spirit of “human-oriented and faithful service”, with an aim to gain global recognition and sustainable development.

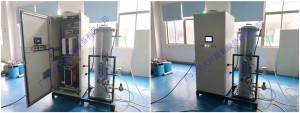

      The strong ozone generator SOZ-YW-G series adopt discharge unit of the titanium decarboxylate crystal structure(Grand Central patented product) which is able to bear high temperature,  having a extremely steady performance and operation life, it is remarkable for the high discharge efficiency and being not easy to be damaged though there is backwater..The ozone generator adopts the water cooling and the circuit components composed of which are products of international brand-name manufacturers.



    Intelligent design of the generator are among the world’s leading technology, which possesses the following functions:

          1.Water-cooling.

    2.Both air and oxygen source accpetable.

    3.Standard 4~20mA signal access port,allowing remote control by different types of ozone measureing devices.

    4.Key points monitoring including main board temperature detection,line output transformer temperature detection,cooling water temperature detection,back flow water  detection of the corona discharge tube.

    5.Stepless adjustable ozone output.

    6.Circuit components from Siemens(IGBT).

    7.PLC standard.

    Hacf3597a18b0408c9d33b7f87fbc6476u1SOZ-YW-1.5~2KG20200602161739



    Model

    SOZ-YW-1KG SOZ-YW-1.5KG SOZ-YW-2KG SOZ-YW-3KG SOZ-YW-4KG
    Ozone output (g/h) 1000 1500 2000 3000 4000
    Cooling Cooling water:1.5~4m3/h Cooling water:2~6m3/h Cooling water :3~6m3/h cooling water:5~8m3/h cooling water:8~9m3/h
    Max.ozone concentration(g/m3) Oxygen source:90~140         Air source:16~35
    L×W×H mm 2000×600×1450 2600×600×1450 3500×600×1450 2450x1450x2150 2750x1650x2150
    Weight kg 350 500 820 950 1050
    Power KW 10.2 15.5 22 24 33
    Power source 220V~240V/380V 50~60HZ      110V/200V 50~60HZ
    Gas source   Oxygen:Or use a clean and dry air source





    On the gas flow control: When using the oxygen source, the gas flow is 10-35 / min; when using the air source, it can be regulated accordingly; please try to turn gas flow down as possible when the ozone density satisfies the demand,( to turn the oxygen flow down can lengthen the service life of the oxygen generator).



    Upon a small gas flow control, it can also adjust Ozone volume controls to increase or decrease amount of ozone.

    It may open a set, two or more sets accordingly, but generally one set will be remained as the spare, the flowmeter of the set which is not open must be turned off.
